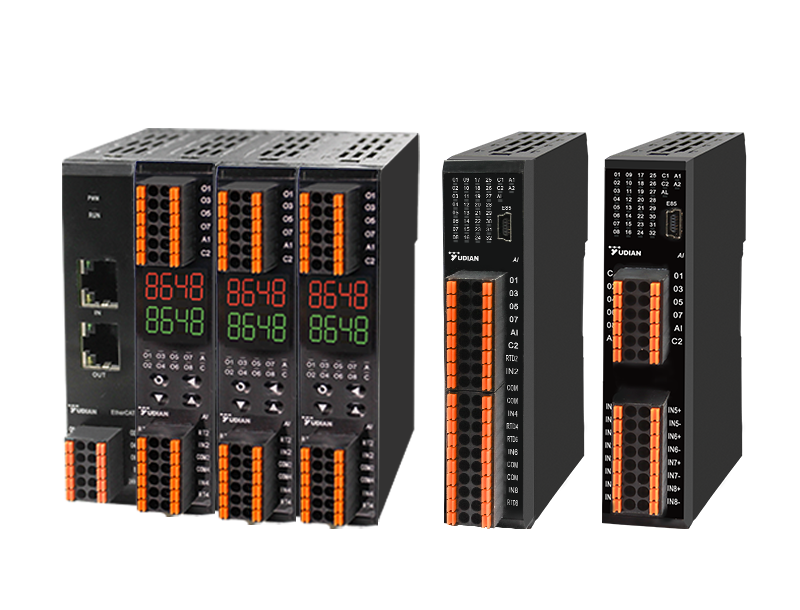

AI-86X8 Series Universal Multi-Channel Temperature Controllers
AI-8688J0: 8-channel, three-wire PT100 and PT1000 input, equipped with 2 sets of high-performance 24-bit A/D converters for sampling
AI-8648GJX: Feature 4 channels of independent isolated inputs. With J1 configured for thermocouple input, J3 and J4 provide 4 isolated channels of linear voltage and current inputs, respectively. Input isolation voltage exceeds 200V
AI-8688GJX: Feature 8 channels of independent isolated inputs. With J1 configured for thermocouple input, J3 and J4 provide 4 isolated channels of linear voltage and current inputs, respectively. Input isolation voltage exceeds 200V
1. Multi-channel intelligent temperature controller, supporting multi-channel PT100 and PT1000 inputs, with 0.15-class measurement accuracy.
2. One 24-bit high-performance A/D converter is assigned to every 4 channels for sampling, with a minimum sampling rate and control cycle of 0.5 seconds.
3. Optional NPN, PNP, and SSR drive outputs, or linear voltage/current outputs are available, along with 2 selectable alarm outputs.
4. Modbus communication protocol is supported in standalone mode. If a combination configuration is selected, it can also support communication methods such as TCP, EtherCAT, and DeviceNET.
